Perfluoro Coating & Potting
|
Specifically manufactured Perfluorocarbon based coatings
by United Adhesives are to provide superior protection of
electronic devices, such as dies, chips, PCBs, sensors,
etc., from the attacking of chemicals, acids, oils, fuels,
corrosive fluids, gasoline, and other corrosive medias.
Three coating products are ready for selection. PFC
9002 is solvent-based product for spraying to form a thin-coated
layer. PFC9004 is a non-solvent, flowable version for dispensing
as conformal coating. PFC 9006 is a thixotropic non-sag
formulation for dispensing as "globe-top" encapsulation
on local parts such as chips, dies and components to provide
superior selective protection.
|
|
|
|
Name
|
Perfluoro
PFC 9002
|
Perfluoro
PFC 9004
|
Perfluoro
PFC 9006
|
|
Chemical Base
|
Perfluoro Carbon
|
Perfluoro Carbon
|
Perfluoro Carbon
|
|
Features / Advantages
|
Sprayable Liquid with
solvent. Superior chemical, fuels, oil, moisture and
media resistance. Excellent high temp stability.
|
Dispensable / sprayable
as conformal coating. Superior chemical, fuels, oil,
moisture and media resistance. Excellent high temp
stability.
|
Thixotropic (non-sag)
formulation. Dispensable. Superior chemical, fuels,
oil, moisture and media resistance. Excellent high
temp stability.
|
|
Typical Application
|
For spray-coating
of electronic devices to provide superior media corrosion
resistance such as oil, fuel and chemicals, etc.
|
For coating of electronic
devices to provide superior protection of dies, components,
wire-bonds etc, from chemical, oil, or media attack.
|
For coating of electronic
devices to provide superior protection of dies, components,
wire-bonds etc, from chemical, oil, or media attack.
|
|
Appearance / Color
|
Transparent
|
Transparent
|
Milky
|
|
Rheology
|
Sprayable
|
Sprayable, Dispensable
|
Dispensable
Non-sag
|
|
Part / Component
|
One
|
One
|
One
|
|
Viscosity @25C (cps)
|
20
|
200
|
25,000
|
|
Density (g/cc)
|
1.40
|
1.42
|
1.43
|
|
Cure Rate
|
125C 15 min
|
125C 15 min
|
125C 30 min
|
|
Weight loss in pH=1
Nitric acid @25C 48 hrs
|
< 5%
|
< 5%
|
< 5%
|
|

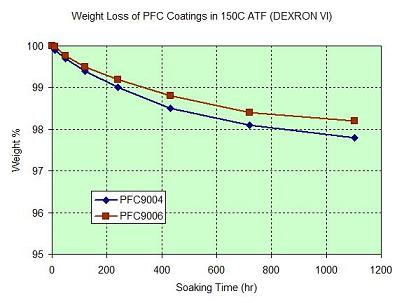

Weight change in Dexron
VI (150C 1000 hrs)
|
< 3%
|
< 3%
|
<3%
|
|
Storage
|
< 4C
|
< 4C
|
< 4C
|
|
Shelf Life (days)
|
3 month @ 4C
|
3 month @ 4C
|
3 month @ 4C
|
|
Thermal Stability
|
-55C to 180C
|
-55C to 180C
|
-55C to 180C
|
|
Hardness (ASTM D2240)
|
Shore A = 30
|
Shore A = 30
|
Shore A = 45
|
|
Volume Resistivity
(Ohm-cm)
|
> 10E13
|
> 10E13
|
> 10E14
|
|
Dielectric Strength
(KV/mm)
|
> 400 V/mil
|
> 400 V/mil
|
> 400 V/mil
|

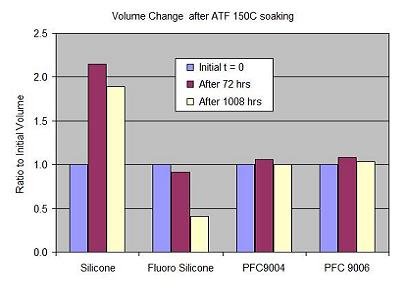

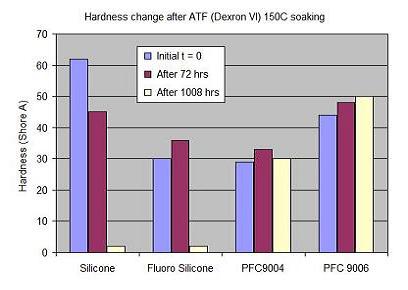

Hardness and volume change of perfluoro coating in transmission
fluid
(Comparison with regular silicone and fluorosilicone)
|
|
|
|
